Finding a way to boost efficiency of CIGS solar cells

Immersion of zinc-based buffer layer in ammonia water doubles conversion efficiency By Masanobu Izaki
From left: Masanobu Izaki and his students

Masanobu Izaki and his colleagues have revealed the structure of the buffer layer in a CIGS (copper-indium-gallium-selenide) solar cell at SPring8, the world’s largest third-generation synchrotron radiation facility. They found that the buffer layer was composed of two layers: an upper Zn(OH)2 layer and a lower Zn(S, O) layer. By removing the upper Zn(OH)2 layer, the solar conversion efficiency was doubled.

CIGS (copper-indium-gallium-selenide) solar cells are compound thin-film solar cells and the most established alternative to silicon solar cells. Solar conversion efficiencies of over 20% have recently been achieved in CIGS solar cells.

Figure1

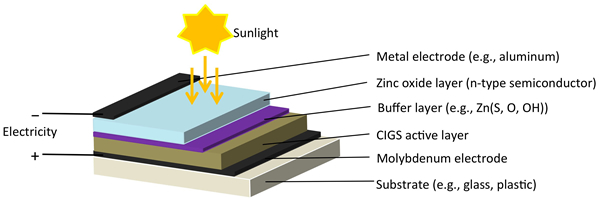

Figure 1. Configuration of a typical CIGS solar cell

One of the factors known to strongly affect the conversion efficiency is the buffer layer (see Figure 1). However, the structure of the buffer layer and its precise influence on the conversion efficiency have not been clarified. Professor Masanobu Izaki and his colleagues at Toyohashi University of Technology, in collaboration with researchers at the Research Center for Photovoltaic Technologies which belongs to the National Institute of Advanced Industrial Science and Technology, have analyzed the structure of a zinc-based buffer layer in a CIGS solar cell at SPring8 (the world’s largest third-generation synchrotron radiation facility, located in Hyogo Prefecture, Japan).

Figure1

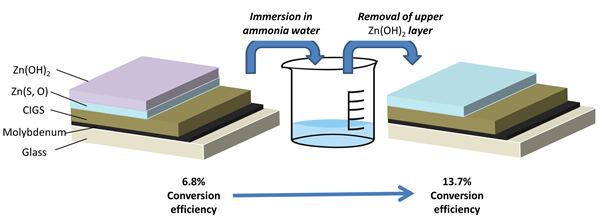

Figure 2. The deposited Zn(S, O, OH) buffer layer was found to consist of sublayers of Zn(S, O) and Zn(OH)2. Immersion in aqueous ammonia removed the topmost layer

“Performing structural analysis on very thin films is extremely difficult,” Professor Izaki said.

The researchers revealed the structure of the buffer layer and identified a way to improve the conversion efficiency. The study was published online in Progress in Photovoltaics on August 17, 2015.

“We analyzed the structure of the buffer layer by X-ray photoelectron spectroscopy, transmission electron microscopy, and other techniques. We found that the buffer layer was composed of two layers: an upper Zn(OH)2 layer and a lower Zn(S, O) layer. Moreover, the conversion efficiency was improved from 6.8% to 13.7% by removing the upper Zn(OH)2 layer,” Professor Izaki said.

In their article, the researchers described how to remove the upper Zn(OH)2 layer. The method is simple but highly effective: quick immersion of a 120-nm-thick film in ammonia led to a doubling of the solar conversion efficiency (see Figure 2).

This study reveals the importance of the buffer layer structure and composition, and is expected to be a valuable step for the development of next-generation CIGS solar cells. It is anticipated that once CIGS cells are able to be mass produced at a reduced cost, they will become a main player in the solar cell market.

Reference

Masanobu Izaki, Shinya Sugiyama, Tetsuhito Okamoto, Yuya Kusano, Takeshi Maki, Hironori Komaki, Hajime Shibata, and Shigeru Niki (2015). Structure of Chemically Deposited Zn(S, O, OH) Buffer Layer and the Effects on the Performance of Cu(In, Ga)Se2 Solar Cell, Progress in Photovoltaics, Article first published online: 17 AUG 2015 | DOI: 10.1002/pip.2666

Share this story

Researcher Profile

Name Masanobu Izaki
Affiliation Department of Mechanical Engineering
Title Professor
Fields of Research Thin film science and technology / Solid-state electrochemistry
