Towards building next-generation batteries using a pigment electrode

Electrode design of next-generation batteries using Prussian blue and its analogues By Tomohiro Tojo
Tomohiro Tojo (left of picture) with his colleagues
Tomohiro Tojo (left of picture) with his colleagues

Tomohiro Tojo and his colleagues have demonstrated the properties of calcium ion batteries (CIBs) created using pigment electrodes such as Prussian blue and its analogues. The CIBs showed excellent cyclability of discharge and charge in a calcium-based organic electrolyte. This is thought to derive from strong atomic bonds in Prussian blue structures, which possess movable pathways for large-sized ions in three dimensions. Such unique structures have excellent potential for application in a new generation of batteries

Calcium ion batteries (CIBs) have attracted much attention as the next-generation batteries likely to replace lithium ion batteries (LIBs). This is because the theoretical capacity of CIBs is twice that of LIBs. This doubled capacity can be explained by the difference between monovalent and divalent ions. In addition, CIBs possess advantages such as lower cost and higher safety because calcium is more abundant than lithium and because CIBs have a higher melting point than LIBs. However, there is one major obstacle to the application of CIBs. It is hard to find a suitable electrode material in which calcium ions can be inserted and extracted reversibly because of the relatively large ionic radius of calcium ions (112 pm) as compared to that of lithium ions (76 pm).

In this study, Tomohiro Tojo and his colleagues at the Department of Electrical and Electronic Information Engineering, Toyohashi University of Technology, employed Prussian blue (PB) and Prussian blue analogues (PBAs) as CIB electrodes because they possess large sites for inserting and extracting large-sized ions, as shown in Fig. 1. Up to now, using PBAs as an electrode material, the electrochemical behaviors of sodium ions corresponding to the radius of calcium ions have been examined in organic and inorganic electrolytes. These reports have shown reversible insertion and extraction of sodium ions into and from PBA structures.

Figure 1.

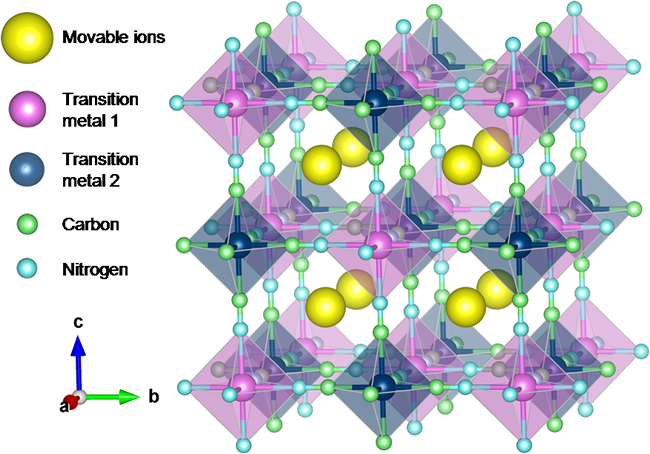

Figure 1. Crystal structure of Prussian blue and its analogues

The research team investigated the electrochemical performance of several PBA electrodes in order to determine whether calcium ions in an organic electrolyte exhibit either reversible or irreversible insertion and extraction into and from the crystal structure. Reversible capacities of 40–50 mAh/g were observed at a low current density, as shown in Fig. 2(a). In Fig. 2(b), the Coulombic efficiencies, which are defined as the ratio of the amount of insertion (discharge) and extraction (charge) of calcium ions, were observed to have a constant value of 90% after the 3rd cycle.

Figure 2.
Figure 2.

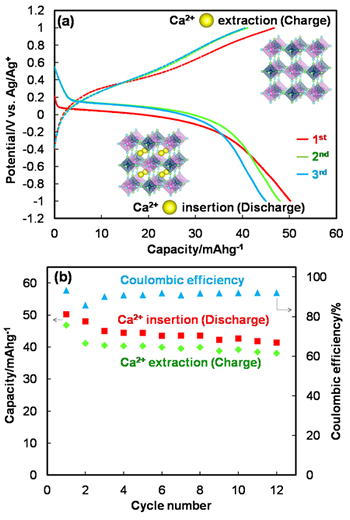

(a) Discharge-charge profiles of a Prussian blue analogue electrode in a calcium-based organic electrolyte and
(b) cycled capacities with discharge-charge capacity ratio

The results shown in Fig. 2 demonstrate the excellent cyclability of the PBA electrodes, even though the reversible capacities were half the theoretical capacity. The researchers investigated the reason for the high reversibility using X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS). The reversibility is explained by the durable structure of the PBAs and their excellent charge balance during the insertion and extraction of calcium ions.

This data suggests that Prussian blue (PB) and Prussian blue analogues (PBAs) may be proposed as feasible electrode materials for CIBs, although additional investigation is needed in order to enhance the reversible capacities still further. The researchers plan to carry out further study to improve the performance of CIBs relative to LIBs.

This work was partially supported by

  • Grant-in-Aid for Challenging Exploratory Research (No. 15K13947) by MEXT.
  • Grant-in-Aid for Scientific Research (B), No. 24360109 by MEXT


Tomohiro Tojo, Yosuke Sugiura, Ryoji Inada, and Yoji Sakurai (2016). Reversible Calcium Ion Batteries Using a Dehydrated Prussian Blue Analogue Cathode, Electrochimica Acta, 207, 22-27, 10.1016/j.electacta.2016.04.159
