Future Electric Vehicle to Run Far Beyond

Electrically powered vehicles (EV) are promising environmentally friendly alternatives for combustion engine-based automobiles. Electric motors offer significant advantages including high energy efficiency; low noise emission; low temperature operation; no emission of exhaust gases; and the possibility of power regeneration from kinetic motion when a vehicle slows down.

However, batteries used in present-day EV limit the continuous running distance from one charge. Furthermore, it takes an impractical long time to recharge the batteries, and loading larger batteries increases the onboard load, which leads to greater consumption of energy to move vehicles. And notably, batteries are too expensive for use in replacing all existing cars, buses, and trucks.

Here, Masahiro Hanazawa at Toyota Central R&D Labs. and Takashi Ohira at Toyohashi University of Technology (Toyohashi Tech) propose a potentially revolutionary solution for powering EVs capable of running unlimited distances. The basic concept stems from electric railways, where each car of the train is power from an overhead wire while the car runs on tracks. The researchers imagined how an automobile running along a road could do so without resorting to dangerous contacting devices such as pantographs, and finally came up with a profound and novel idea: The source of energy from power lines is up-converted into radio frequency (RF) by high-speed inverters implanted along tracks in the road. The RF voltage is applied to a balanced metal track embedded under the surface of the road. The EV picks up the RF voltage via electrical capacitance between the metal and a steel belt installed inside of the tires of the EV.

The researchers conducted feasibility experiments to test their ideas, and to explore the RF frequencies where such power transfer is effective and practical. In the experiments, the researchers put small metal plates on the floor and inside a tire, and positioned another metal plate above the tire. Finally, they measured the electrical impedance between the two plates. This set-up should be equivalent to double the impedance between a plate and a steel belt.

Experimental results showed the impedance to depend linearly on the RF frequency, and to exhibit 2000-j700 ohm at 1 MHz. Then the researchers designed and implemented a 50 ohm reactance circuit to match this, where 50 ohm is the standard impedance for RF transmission lines. This experimental set-up enabled a high transmission efficiency with sub 1 dB loss.

Although these were low power experiments, they demonstrate the feasibility of energy transfer from the road to a running automobile. If this energy transfer could be increased to tens of kW on express ways, then in the future it may be possible to take EV from your house to the nearest interchange with a small battery and then cruise on the expressway via this feeder system as far as you want without concern about battery discharge problems.

Reference:
Masahiro Hanazawa and Takashi Ohira, “Power Transfer for a Running Automobile”, IEEE MTT-S International Microwave Workshop Series on Innovative Wireless Power Transmission, IMWS-IWPT2011, pp.77-80, Kyoto, May 2011.
Affiliations: Department of Electrical and Electronic Information Engineering, Toyohashi University of Technology.
website: https://www.tut.ac.jp/english/introduction/department02.html


Takashi Ohira, Toyohashi Tech


Masahiro Hanazawa, Toyota Central R&D Labs Inc.


Enlarge Image

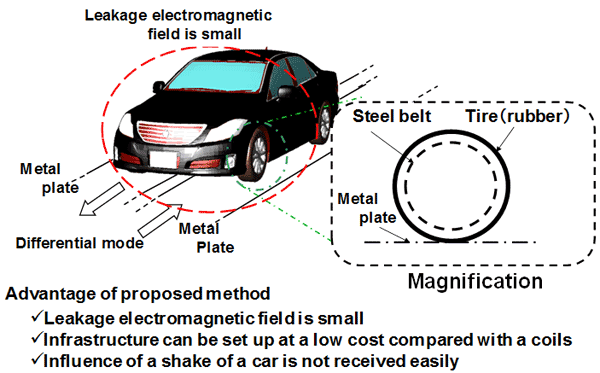

Caption: A schematic of the proposed power transfer system for a running automobile. This system transmits electric power thorough a capacitor composed of a steel belt and a metal plate attached to the road, and the power feed in differential mode. Notably, the leakage electromagnetic field is small, and the infrastructure can be set up at low cost compared with coils.


Enlarge Image

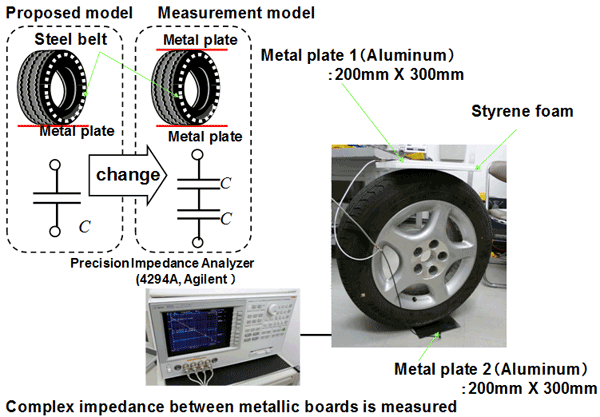

Caption: The proposed model and measurement model. As a the measurement model a metallic board were arranged above and below the tire, and the complex impedance was measured. Pieces of styrene foam of different thickness were placed between the upper surface of the tire and metallic plate. The measurement frequency was from 10 kHz to 10 MHz.
