Virtual handshake: Electronic gadget for shaking hands over the internet

Toyohashi Tech’s Takanori Miyoshi has developed an innovative gadget that enables people to ‘shake hands’ over the internet, irrespective of their location (Fig.1 and Fig.2).

Miyoshi recently displayed his handshake gadget in April 2014 at the 2014 Niconico Chokaigi, Tokyo. “We connected people located in Japan and Taiwan,” says Miyoshi.” The participants in Tokyo included Japan’s Prime Minister.”

Notably, approximately 96% of the participants showed ‘excitement for the device’ and more than 65% could feel ‘mutual force and motion’.

The handshake gadget developed by Miyoshi is simple, and constructed using components readily available on the internet. The main parts include the well-known Falcon haptic device, a force sensor, and tele-control algorithm.

However, the development of the handshake system demanded the resolution of a problem related to ‘howling’ in the control electronics that led to instability in the ‘virtual handshake’. This problem can be understood as being similar to the loud howling noise that is sometimes generated when two microphones come too close together in an auditorium.

“I solved the problem of howling by constructing a unique low pass filter,” explains Miyoshi. This is the triangular component shown as ‘Ws(s) in Fig. 2. “The filter keeps the gain at less than unity, and thereby prevents instabilities in the circuit.”

Miyoshi intended to develop the handshake system for applications including internet games, remote surgery to give doctors greater feeling during surgical procedures, and hand operated robotic arms used in nuclear power stations managing radiative materials.

Takanori Miyoshi

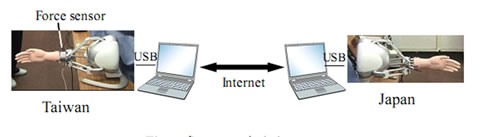

Fig. 1 The main parts of the internet based handshaking system.
Enlarge Image

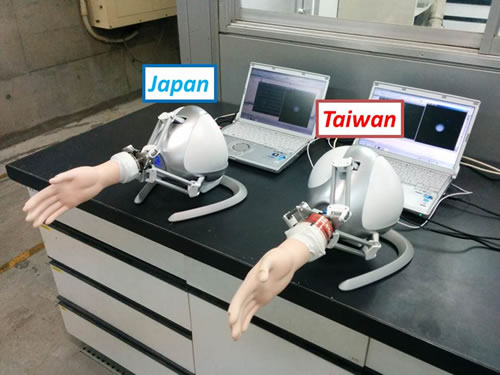

Fig. 2 The internet based handshake system connecting Japan and Taiwan.
Enlarge Image

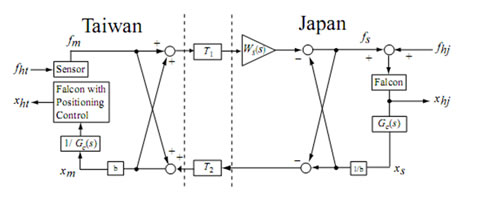

Fig. 3 showing the low pass filter developed by Takanori Miyoshi to prevent ‘howling’ in the handshake system.
