Sodium solid electrolyte with high conductivity and electrochemical stability

Towards the development of all-solid-state sodium-ion batteries with long-term stability Hirotada Gamo
Yuki Arakawa

A research team led by Hirotada Gamo, a doctoral student in the Department of Electrical, Electronic and Computer Engineering at Toyohashi University of Technology, has developed Na3SbS4, in which part of the sulfur (S) is substituted with chlorine (Cl), as a solid electrolyte for all-solid-state sodium (Na) ion batteries. The ionic conductivity of Cl-substituted Na3SbS4 was improved by a factor of 3 at room temperature compared with that of the sample without Cl substitution. In addition, the crystal structure of Cl-substituted Na3SbS4 has a crystal structure framework that facilitates the three-dimensional migration of Na ions. Furthermore, the Cl-substituted Na3SbS4 showed better stability against Na anode.

The increasing demand for large-scale energy storage has stimulated research on developing all-solid-state sodium (Na) ion batteries using low-cost and abundantly available Na resources. The development of solid electrolytes that exhibit high ionic conductivity at room temperature is essential for the practical application of all-solid-state Na-ion secondary batteries. In order to meet this challenge, interest both in Japan and overseas has been focused on Na3SbS4 as the most promising candidate amongst the various solid electrolytes due to its high conductivity of 1 mS cm-1 or higher at room temperature. However, in order to achieve the high conductivity, post processing is required through ball milling, and achieving high ion conductivity through a simpler synthetic process has been notably problematic.

In response to this challenge, the research team lead by the Doctoral student Hirotada Gamo used a liquid-phase synthesis method suitable for mass production to develop a Cl-substituted Na3SbS4 solid electrolyte. By partially substituting S in the Na3SbS4 with Cl, the ionic conductivity at room temperature was enhanced by a factor of three (0.9 mS cm-1) compared to the sample without substitution (0.3 mS cm-1). In order to elucidate the effect of the structural change caused by the Cl substitution on the ionic conduction properties, the ionic conduction path was visualized by precise analysis of the crystal structure.

As a result, it was demonstrated that the partial substitution of Cl for S in Na3SbS4 results in the formation of a crystal structure framework in which Na ions are loosely bound to S (or Cl), i.e., there is a weak electrostatic interaction between Na and S (or Cl), which promotes ion diffusion, especially in the crystallographic c-axis direction. The increase in ionic conductivity by Cl substitution is attributed to the formation of a crystal structure with a three-dimensional ion diffusion pathway.

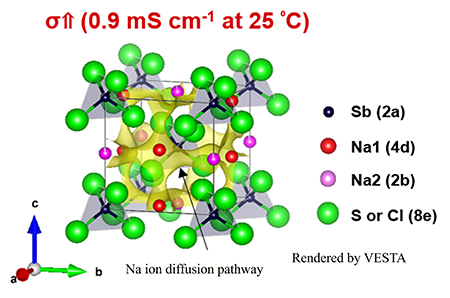

Visualization of three-dimensional ion diffusion pathway (yellow section) and crystal structure of Cl-substituted Na3Sb4
Visualization of three-dimensional ion diffusion pathway (yellow section) and crystal structure of Cl-substituted Na3SbS4

Additionally, the team discovered that the Cl-substituted Na3SbS4 solids exhibit better stability against the Na anode than the non-Cl substituted samples.. This improvement in electrochemical stability leads to a reduction in the interfacial resistance between the anode and the solid electrolyte, demonstrating that Cl substitution in large amounts is effective in improving the stability against the anode..

The research team has pointed the way towards future research by discovering important design guidelines for developing an ideal solid electrolyte with desirable characteristics such as high ionic conductivity and superior electrochemical stability. They believe that the solid electrolyte developed in this research could be combined with liquid-phase coating technology to realise all-solid-state Na-ion batteries with a high storage capacity and stable cycling.


Hirotada Gamo, Nguyen Huu Huy Phuc, Hiroyuki Muto, and Atsunori Matsuda, Effects of Substituting S with Cl on the Structural and Electrochemical Characteristics of Na3SbS4 Solid Electrolytes, ACS Applied Energy Materials 4(6), 6125-6134 (2021).
