Digital generation of true random numbers for computer security
The generation of true sets of random numbers is critical for secure computer system networks. True random number generation (TRNG) is carried out by analog electron circuits, which are expensive and difficult to integrate with digital technology.
Here, Hisashi Hata and Shuichi Ichikawa describe the design and implementation of TRNG from fully digital circuits by exploiting the metastability the RS latch.
The TRNG is comprised of only logic gates enabling ease of integration with logic LSI. Notably, the RS latch is implemented as a ‘hard macro’ to ensure randomness by minimizing signal skew and load imbalance of internal nodes.
The TRNG has 256 latches, occupies 580 slices, and achieves 12.5 Mbps output.
・Hisashi Hata and Shuichi Ichikawa
・ FPGA Implementation of metastable-based true random number generation
・IEICE Trans. Inf. & Syst. E95-D, 426–436, (2012)
Shuichi Ichikawa

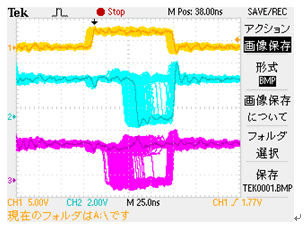

Observed metastability of an RS latch
Enlarge Image

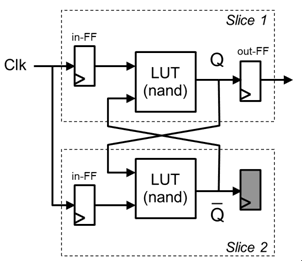

LUT latch: an RS latch, implemented with two LUTs in FPGA device
Enlarge Image

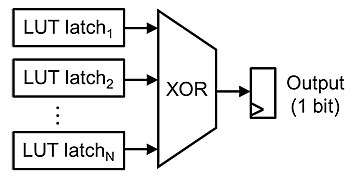

Practical configuration of a TRNG
