Bioactuator:Vorticella actuation in microfluidic systems
Vorticella is a microorganism with a stalk capable of linear actuation with a 100 µm working distance. Contraction and extension of the stalk are induced by Ca2+ (calcium ions) and chelators such as EDTA and EGTA. As the stalk does not require an external power source for actuation, it has intriguing possibilities for applications in microfluidic systems.
However, controlling Vorticella actuation in a microfluidic device remains a major challenge for these applications. Now Moeto Nagai and colleagues in Japan and Usa at Toyohashi University of Technology have demonstrated that pneumatically controlled microvalves can be used as a control system for the actuation of the stalk.
The experiments were conducted in three steps: microfluidic devices were fabricated by multi-layer soft lithography; the Vorticella were introduced and cultured in the device; Ca2+ and EGTA solution were injected.
The length of the stalks changed between 20 and 60 μm in the presence of Ca2+ and EGTA, resulting in a working distance of about 40 μm.
The stalks of Vorticella show genuine potential for applications in microsystems such as micro-positioners and microvalves.
- Reference:
- Moeto Nagai1,2,Sangjin Ryu3,Todd Thorsen3,Paul Matsudaira3 and Hiroyuki Fujita2
- Chemical control of Vorticella bioactuator using microfluidics
- Lab Chip, 10, 1574–1578 (2010).
- Digital Object Identifier (DOI): 10.1039/C003427D
- 1Moeto Nagai is now at Department of Mechanical Engineering, Toyohashi University of Technology
- 2Institute of Industrial Science, The University of Tokyo
- 3Massachusetts Institute of Technology.
Moeto Nagai
Enlarge Image

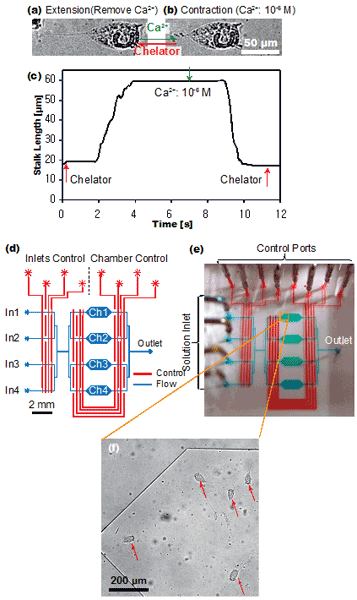

Figure caption: (a)—(c) Length change in a Vorticella stalk in a different [Ca2+]. A rise of [Ca2+] drives the stalk contraction. A removal of [Ca2+] induces the stalk extension. (d) Structure and (e) picture of the microfluidic device. (f) Five cells of Vorticella cultured in the device.
