A milestone of developing CNC-based applications

Monitoring the real-time deformation of carbon nanocoils under axial loading By Yoshiyuki Suda

(left)Yasushi Nakamura (right)Yoshiyuki Suda

Tensile tests were performed on nine carbon nanocoils (CNCs) using a focused-ion-beam (FIB) technique. An individual CNC was picked up using an FIB, and a CNC bridge formed between a probe and the spring-table substrate. Real-time observations of the CNC elongation and subsequent fracture under prolonged stretching enabled us to estimate the elastic limit, the spring constant, the shear modulus, and the ultimate strength of each CNC and their mean values.

Figure1

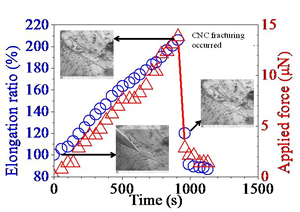

Figure 1: Real-time observation of CNC tensile tests and SIM images of variations in the coil geometry over time.

Carbon nanocoils (CNCs) composed of helical shaped carbon nanofibers have many potential applications, including mechanical springs and nano-solenoids. There are already some reports which measured the spring constant of CNCs.

However, the CNC response to prolonged stretching (which includes initial elastic elongation to large-scale deformation in the plastic regime and subsequent tensile fracture followed by post-fracture contraction and the release of the applied strain), remains undetermined. It is crucially important to secure real-time measurements of CNC deformation beyond the linear elastic regime.

Taiichiro Yonemura, Yoshiyuki Suda , and their colleagues at the Department of Electrical and Electronic Information Engineering, Toyohashi University of Technology have now described the real-time deformation data that exhibited sequential change in CNC geometry after each coil was subjected to a uniaxial load at a constant rate.

CNC tensile tests were conducted as follows: The CNCs were installed into an FIB system with a tungsten (W) probe with a 500 nm tip diameter and the W probe moved until it adhered to CNC using Pt ion beam whereas the Si ion beam cut the CNC bottom; then the CNC-adhered W probe approached a spring table substrate surface, until the CNC was almost perpendicular to the substrate. The tensile tests were performed on nine CNCs by gradually changing the distance between the substrate and W probe.

The real-time data of a CNC tensile test performed using a spring table in the FIB chamber was monitored. A series of three scanning ion microscopy (SIM) images offered visualization of the geometric evolution of the CNC under a tensile load. These images were captured in the free state (t = 0 s), the maximum elongation point (t = 910 s), and a post-fracture state (t = 960 s).

To determine the elastic boundary of the CNCs, we examined the relationship between the applied strain and residual elongation ratios of CNCs after the load release. The result indicates that the CNCs were in the elastic region for elongations up to approximately 15% strain.

Tensile tests, performed on nine different CNCs, revealed that the average CNC spring constant was 1.8 N/m. Using a theoretical equation for the design of macroscopic springs, the shear moduli of the nine CNCs were estimated to be 6 GPa on average. These results may serve as a milestone for developing CNC-based applications in the future.

Movie: Measurement of spring constant of carbon nanocoil.

Reference

Yonemura, T., Suda, Y., Shima, H., Nakamura, Y., Tanoue, H., Takikawa, H., Ue, H., Shimizu, K., and Umeda, Y. (2015). Real-time deformation of carbon nanocoils under axial loading, Carbon, 83, 183-187.doi: http://dx.doi.org/10.1016/j.carbon.2014.11.034
